Thermacore® Sectional Steel Doors – 594
Model 594

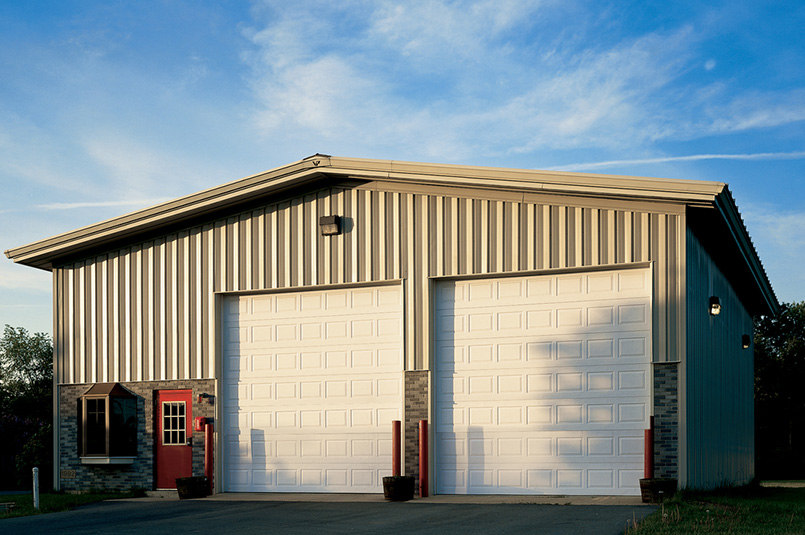

The Thermacore® Sectional Door Model 594 offers excellent thermal efficiency for medium-duty applications. The Model 594 doors feature a raised-panel, wood-grain textured surface for a more decorative appearance. This product is an exceptionally popular choice for RV door applications.
Overview
Construction
| Product Specifications | |
|---|---|
| Standard Max Width | 20'2" (6147 mm) |
| Standard Max Height | 16'1" (4902 mm) |
| Panel thickness | 1 3/8" (35 mm) |
| U-factor* | .15 |
| R-value** | 12.76 (K m2/W) |
| Air infiltration | at 25 mph (40 kmp/h) .15 cfm/ft2 (2.74 m3/hr/m2) |
| Thermal break | Hot melt |
| Exterior Steel | .012" (.3 mm) galv. |
| Exterior Surface | Ribbed, textured |
| Standard Springs | 10,000 cycles |
*U-factor values are independently tested and verified per ANSI/DASMA 105.
**Overhead Door uses a calculated door section R-value for our insulated doors.
Warranty
- 10 year limited delamination
- 1 year limited on door
- 3 year/20,000 cycle limited on door & operator system (when purchased together; on material and workmanship)
- 20 year limited on high performance fluoropolymer coating option
Options
Raised Panel
White
Desert Tan
Almond
Sandstone
Forest Green
Brown
Terra Bronze
Trinar White
Trinar Beige
Trinar Brown
High performance fluoropolymer coating (Trinar® or equivalent) finish option available in white, brown and beige. Offers superior performance.
Actual door color may vary from the digital representation shown here. Color samples are available by request through your Overhead Door™ Distributor.
- Chain Hoist or Electric Operator is recommended for doors above 10’ tall or more than 400 pounds
- Insulated glass, tempered glass, polycarbonate, multi-wall polycarbonate, etc.
- Aluminum sash section available up to 20'2" (6147 mm) wide
- High performance fluoropolymer coating (Trinar® or equivalent)
- High-usage package
- Wind load options
- Electric operator
- Chain hoist
- Posi-Tension™ drums
- Safety bottom fixture
- Bottom-sensing edge
- Flexible jamb, header seal
- Exhaust ports
- Window Glazing Options
