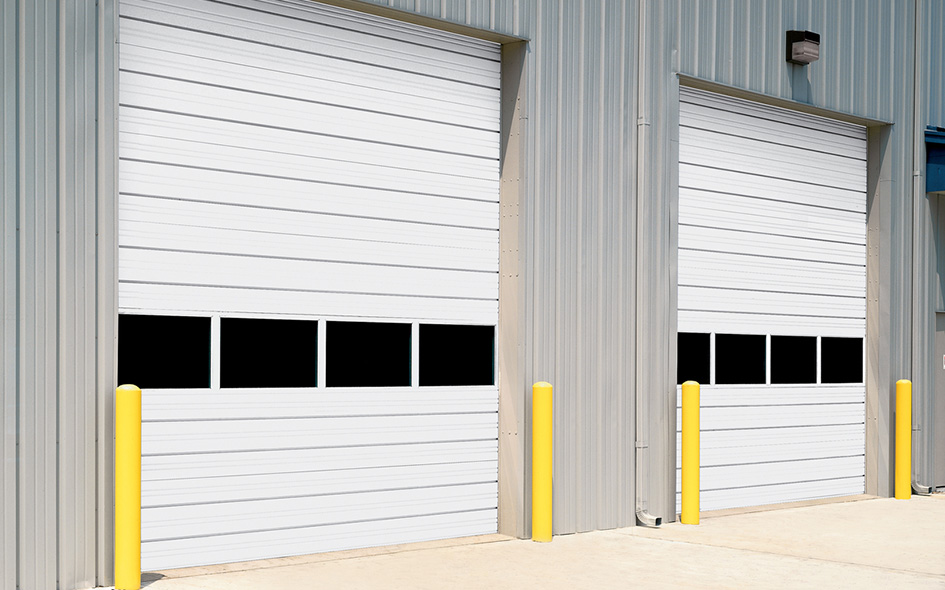

Sectional Steel Door Model 432
Model 432
Sectional steel door model 432 offer a 2″ (51 mm) panel thickness, a nominal 24-gauge ribbed galvanized steel exterior, and a poly-bonded back cover. Polystyrene insulation provides an R-value of 7.35. A variety of options makes this door an economical solution for applications requiring a medium-duty insulated steel door.
Overview
Construction
| Product Specifications | |
|---|---|
| Standard Max Width | 20'2" (6147 mm) |
| Standard Max Height | 16'1" (4902 mm) |
| Nominal thickness | 2" (51 mm) |
| Exterior steel | 26-gauge galvanized steel |
| Back cover | Poly-bonded laminate |
| Insulation | Expanded polystyrene |
| R-value | 7.35 (1.29 W/Msq) |
| Exterior surface | Ribbed |
| Wind Load Compliance | FBC approved wind load options available |
| End stiles | 16-gauge steel |
| Center stiles | 16-gauge steel |
| Standard mounting | Angle mount |
| Standard track | 2" (51 mm) |
| Standard springs | 10,000 cycle |
| Weather Stripping | Standard on bottom |
| Operation | Manual pull rope or electric operator |
| Finish | White or Industrial Brown baked-on polyester |
| Lock | Interior mounted slide lock |
Warranty
- 1-year limited
Options
Ribbed Panel
White
Industrial Brown
Actual door color may vary slightly from the digital representation above.
- Chain Hoist or Electric Operator is recommended for doors above 10’ tall or more than 400 pounds
- 26-gauge galvanized steel back cover
- High impact polystyrene (HIPS) back cover
- Bottom sensing edge
- Full sash section with 1/8" (3 mm) DSB, insulated; 1/8" (3 mm) and 1/4" (6 mm) acrylic
- Individual lites with 1/2" (13 mm) DSB
- 3" (76 mm) track
- Higher-cycle springs in 25k, 50k, 75k, 100k cycles
- Exhaust ports
- Jamb weather seals
- Bottom strips; including: looped PVC weatherstrips, flexible PVC astragal weatherstrips, and double-contact weatherstrips
- Reinforcing struts of roll-formed, galvanized steel
- Movable center posts for 2" (51 mm) or 3" (76 mm) tracks that roll away, with automatic safety catches that prevent door closure when posts are removed
- Tumbler keyed lock
- Window Glazing Options
- Warehouse Package – Quick install system available
- Impact Section Available
Documents
Insulated Sectional Steel Door
Related products
Aluminum Glass Door – 521s
Model 521s
EverServe® Aluminum Glass Door model 521S is a sectional aluminum door appropriate for environments where maximum light infiltration and/or visual access is required. Designed to fit openings up to 20'2" (6147 mm) wide and 18'1" (5512 mm) high, the Model 521 features a wide, 2-11/16" (68 mm) center stile, 3-3/4" (95 mm) or 4-1/2" (114 mm) bottom rail, based on door size.
Sectional Steel Door Model 420
Model 420
Sectional steel door model 420 is designed for heavy-duty use in a variety of commercial and industrial applications. The Model 420 door features a 2" (51 mm) panel thickness, 16-gauge steel intermediate and end stiles, ribbed steel exterior and a white paint finish. This 20-gauge steel door is available in sizes up to 31´2" (9500 mm) in width and 24´1" (7341 mm) in height. Numerous options including weatherstripping, reinforced struts, movable center posts, and motor operation allow these heavy-duty doors to meet nearly any project requirements.
Sectional Steel Door Model 422
Model 422
Sectional Steel Door model 422 door is ideal for heavy-duty applications requiring protection against the elements. These doors feature a 2" (51 mm) panel thickness, 16-gauge steel intermediate and end stiles, ribbed steel exterior and 26-gauge steel back cover in a white finish. Polystyrene insulation provides an R-value of 7.35. The Model 422 is a 20-gauge steel door available in sizes up to 29´2" in width and 24´1" in height (8890 mm and 7341 mm). A multitude of options -- including reinforcing struts, movable center posts, and motor operation allow these insulated heavy-duty doors to be used in a variety of commercial and industrial environments.
Sectional Warehouse Doors
Model 406
Our Sectional Warehouse Doors provide a highly efficient design for strength and longevity for use in demanding commercial settings. They feature full 2” thickness for ultimate strength and durability. Optional insulation consists of 1 5/16” expanded polystyrene throughout the door. Both steel and polylaminate backer choices are available to ensure these models are well-suited for a wide range of applications.
Thermacore® Sectional Steel Door – 591
Model 591
When your project requires a sectional door with an exceptional degree of thermal efficiency, the Thermacore® Sectional Steel Door Model 591 is a proven performer. The Thermacore® steel-polyurethane-steel panel construction provides a thermal barrier that withstands extreme climatic conditions and the most demanding environmental requirements.
This 1 5/8” (41 mm) thick, heavy duty door fits a wide range of opening sizes and the spectrum of applications — making it the best-selling door system in the Thermacore® line and one of the most-specified insulated sectional doors in the industry. Boasting a U-factor of .13 (R-value-14.86) and one of the best air infiltration ratings, the Thermacore® 591 will meet or exceed almost any thermally efficient application requirement.

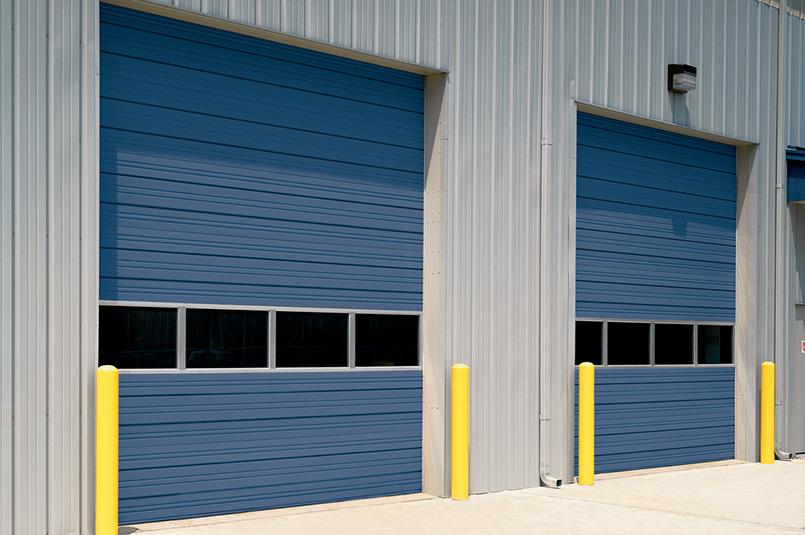

Thermacore® Sectional Steel Door – 592
