Sectional Steel Door Model 424
Model 424
Section Steel Door model 424 are designed for heavy-duty use in a variety of commercial and industrial applications. This door features a 2″ (51 mm) panel thickness, 16-gauge steel intermediate and end stiles, ribbed steel exterior and a white paint finish. The Model 424 is available in sizes up to 30´2″ (9195 mm) in width and 24´1″ (7341 mm) in height, and is also available in Industrial Brown. Numerous options including weather stripping, reinforced struts, movable center posts and motor operation allow these heavy-duty doors to meet nearly any project requirements.
Overview
| Product Specifications | |
|---|---|
| Standard Max Width | 30'2" (9195 mm) |
| Standard Max Height | 24'1" (7341 mm) |
| Nominal thickness | 2" (51 mm) |
| Exterior steel | 24-gauge galvanized steel |
| Exterior surface | Ribbed |
| End stiles | 16-gauge steel |
| Center stiles | 16-gauge steel |
| Standard mounting | Angle mount |
| Standard track | 2" (51 mm) |
| Standard springs | 10,000 cycle |
| Weather Stripping | Flexible PVC bottom with retainer |
| Weather Stripping | Flexible PVC bottom with retainer |
| Operation | Manual pull rope and electric operator |
| Finish | White or Industrial Brown baked-on polyester |
| Lock | Interior mounted slide lock |
| Wind Load | FBC approved wind load options available |
Warranty
- 1-year limited
Options
Ribbed Panel
White

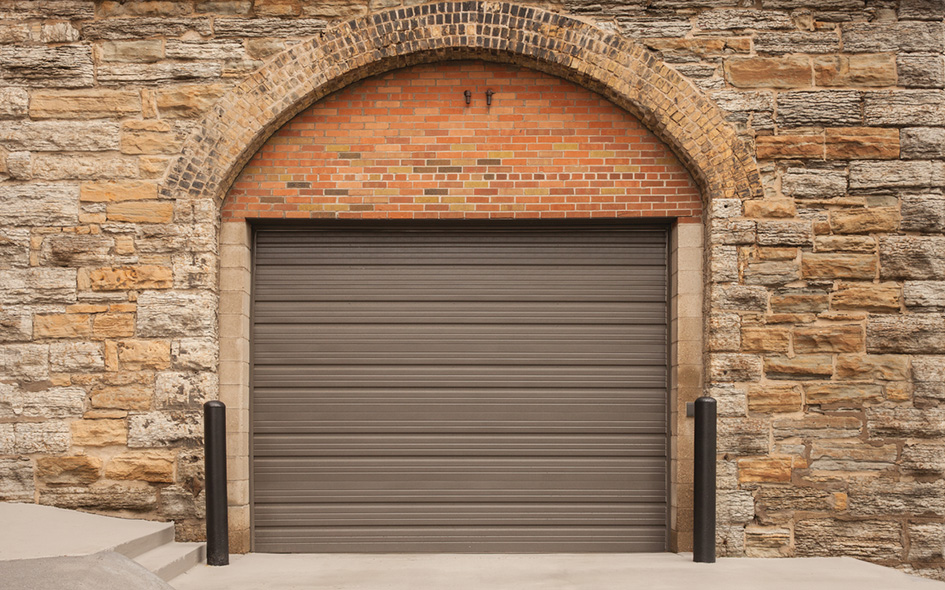

Industrial Brown
Actual door color may vary slightly from the digital representation above.
- Chain Hoist or Electric Operator is recommended for doors above 10’ tall or more than 400 pounds
- Bottom sensing edge

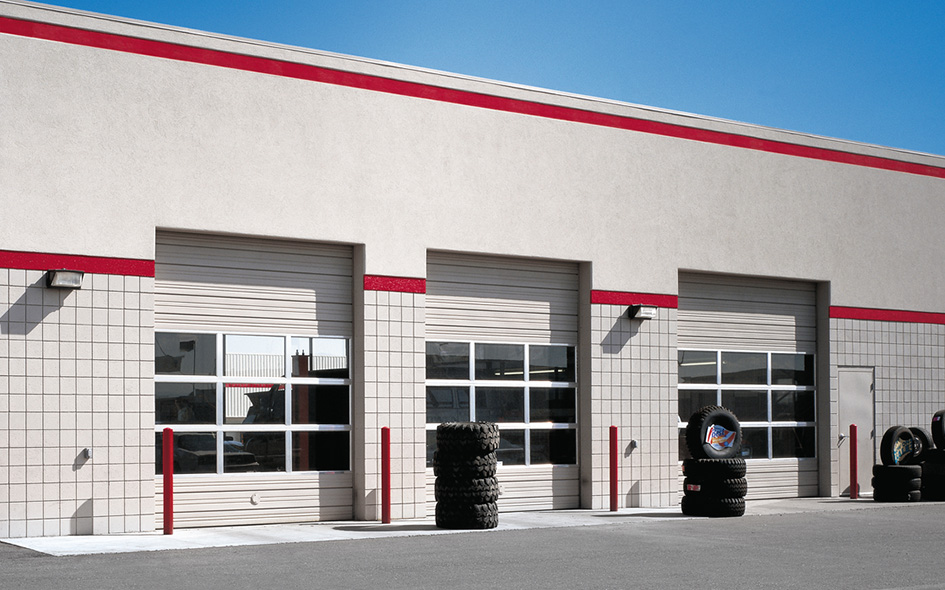

- Full sash section with 1/8" (3 mm) DSB, insulated; 1/8" (3 mm) and 1/4" (6 mm) acrylic
- Individual lites with 1/8" (3 mm) DSB; 1/8" (3 mm) and 1/4" (6 mm) acrylic; 1/8" (3 mm) and 1/4" (6 mm) polycarbonate; 1/8" (3 mm) and 1/4" (6 mm) tempered; 1/4" (6 mm) wired
- 3" (76 mm) track
- Bracket mounting (not available on full vertical door tracks)
- Higher-cycle springs in 25k, 50k, 75k, 100k cycles
- Exhaust ports
- Jamb weather seals
- Bottom strips; including: looped PVC weatherstrips, flexible PVC astragal weatherstrips, and double-contact weatherstrips
- Reinforcing struts of roll-formed, galvanized steel
- Movable center posts for 2" (51 mm) or 3" (76 mm) tracks that roll away, with automatic safety catches that prevent door closure when posts are removed
- Tumbler keyed lock
- Window Glazing Options
- Warehouse Package – Quick install system available
- Impact Section Available
