Rolling Integral Frame Counter Doors – 655
Model 655

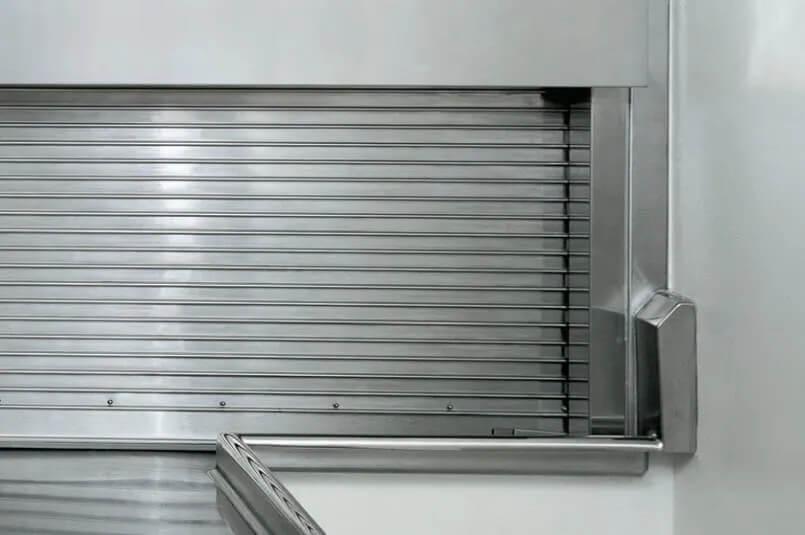

The integral frame / packaged counter door Model 655 combines an attractive finished appearance with the convenience of a factory-assembled unit. These rolling counter doors feature a high-quality 16-gauge stainless steel frame, hood and fascia complemented by a 14-gauge sill. Available to fit openings up to 12’5″ (3785mm) wide and 6’5” 1956 mm) high, these rolling counter doors have a variety of applications including food service areas.
Overview
| Standard Max Width | 12'5" (3785 mm) |
| Standard Max Height | 6'5" (1956 mm) |
| Curtain | .04" (1 mm) aluminum slats |
| Hood | Stainless steel |
| Integral frames | 16-gauge stainless steel |
| Sill | 14-gauge stainless steel |
| Mounting | Between jambs |
| Operation | Manual push up |
| Warranty | OEM limited |
Options
- Crank operation
- Cylinder locking options
- Tubular bottom bar
- Lintel brush seal
- Guide brush seal
Documents
Integral Frame Counter Doors
