Rolling Counter Doors – 650
Model 650

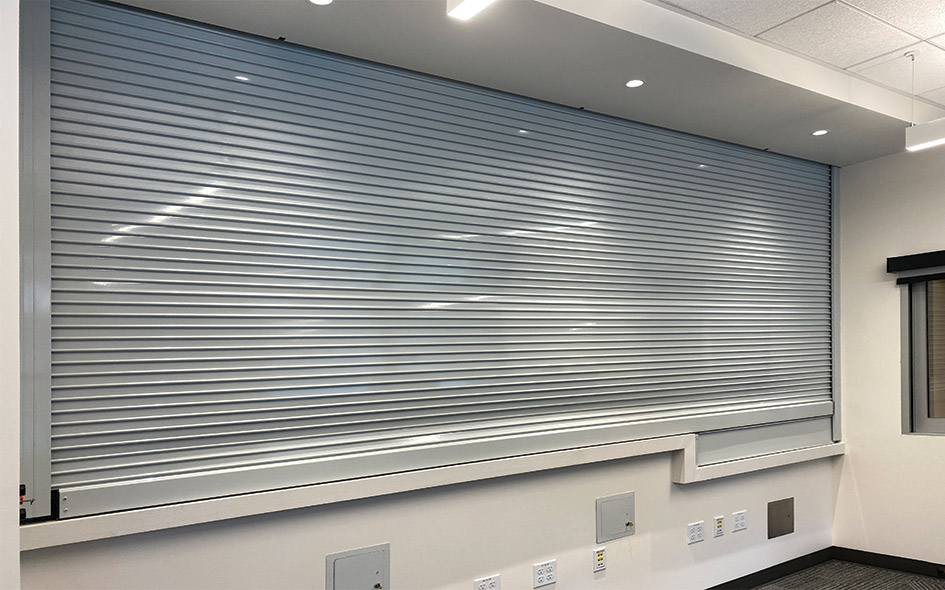

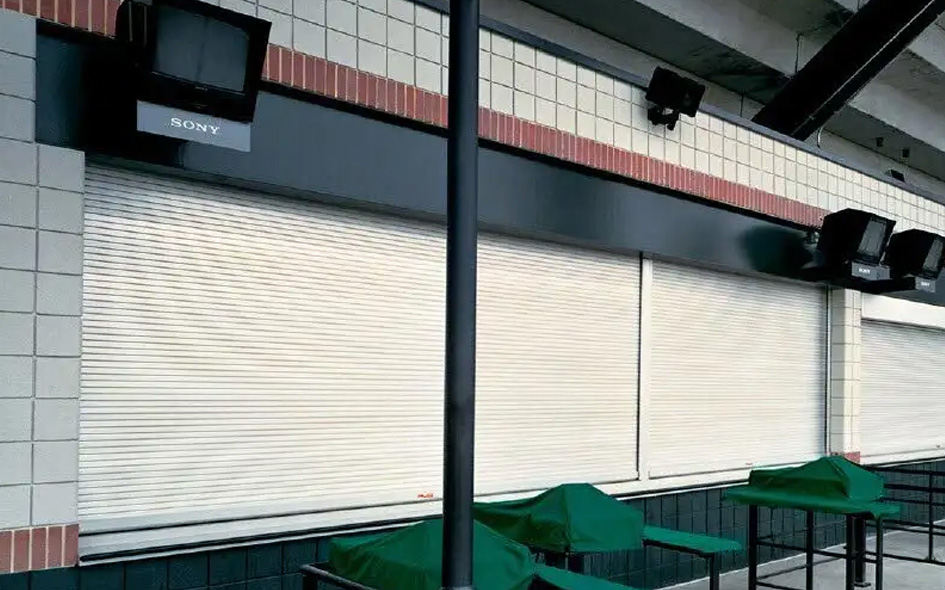

Distinguished by their painted galvanized steel slat curtain finish, Model 650 rolling counter doors are designed to fit openings to 20′ wide and 9′ high. These doors are ideal for a host of small-opening applications where security is important and a non-rated door is appropriate. Common applications include concession areas, cafeterias, pharmacies, parts-storage areas and ticket windows.
Overview
| Standard Max Width | 20' (6096 mm) |
| Standard Max Height | 9'0" (2743 mm) |
| Curtain | Interlocking flat profile slats (F-158) with endlocks; galvanized steel |
| Hood | Galvanized steel |
| Finish | Galvanized steel primed with choice of baked-on polyester top coat in gray or tan |
| Brackets | Steel plate to support curtain, counterbalance and hood |
| Guides | Extruded aluminum |
| Counterbalance | Helical torsion springs housed in a steel tube or pipe barrel |
| Mounting | Face of wall, between jambs |
| Operation | Manual push up |
| Lock | Interior slide bolt |
| Warranty | 24 - month limited |
Options
- Crank or electric operation
- PowderGuard® Premium powder coat finish options are available in approximately 200 colors as well as custom matching to specification.
- PowderGuard® Zinc and PowderGuard® Weathered finishes
- Vision lites
- Perforated slats
- Fenestrated slats with uniformly spaced openings of 5/8" x 3" (16 mm x 76 mm)
- Guides: 11-gauge roll-formed steel guides
- Cylinder lock
Commercial Standard Exterior
Gray
Tan
Powder Coat Color Options
PowderGuard® Premium powder coat options are available in approximately 200 colors as well as custom matching to specification.
Counter Doors
Standard Exterior Color
Actual door color may vary from the digital representation shown here. Actual color samples are available by request through your Overhead Door™ Distributor.
Documents
Rolling Counter Doors
