Mechanical Pit Leveler M68R & M78R
- Fast, safe install with height adjusters operated while standing on building floor-no need for installer to be under leveler and no shimming/welding needed in rear of pit
- Adjusters quickly position the dock level with the building floor
Improved safety — the installer is never under the leveler - Levelers ship with four steel fork loops bolted to the deck, which improves stability when lifting from a truck. The loops help with forklift placement into a pit from inside or outside the building, and helps to minimize levelers sliding while stacked on top of each other
- Cut outs identify weld points to the curb angle for faster installation
- Lifter arm is mounted to the rear of the frame instead of sitting on pit floor. No need to shim or weld under the lifter arm
Durable Design and Finish
- Base frame is open all the way to the rear of the pit for easy access with no cross beams or places to trap debris
- C-channel beams create a strong deck structure and allows moisture to dry
- Deck design eliminates the transition angle which is a frequent repair on many levelers
- Deck hinge is fully supported across the entire width of the deck to enhance long term durability
- Durable textured powder coat finish
- Compliant with ANSI MH30.1-2022
Smooth Building-To-Truck Transition

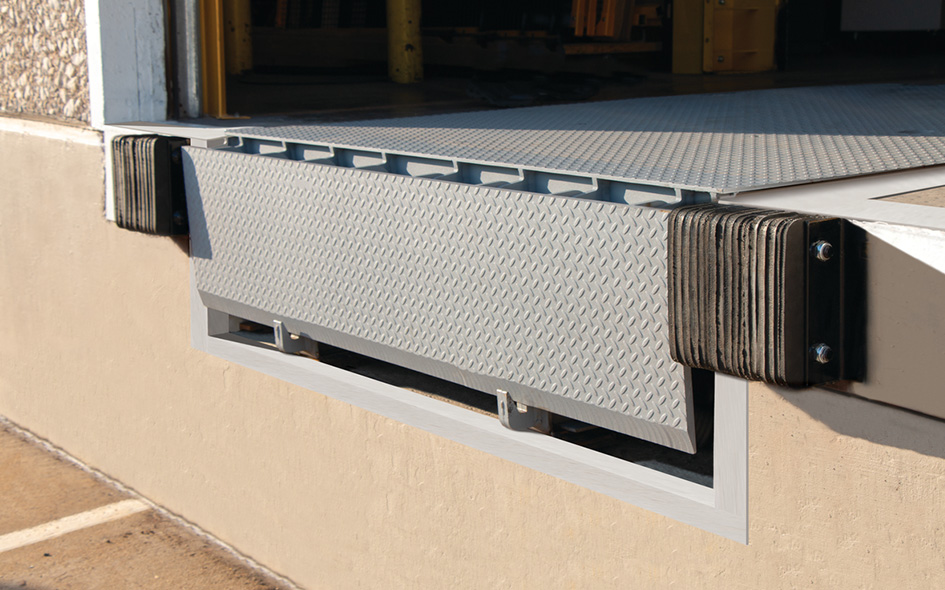

- Designed with an optimized beveled lip to reduce bumps and damage to cargo and material handling equipment
- Reduces shocks and jolts to workers by creating a level pathway
- Facilitates fast movement of material handling equipment and forklifts
Easy-to-Use and Ergonomic
- Release chain for deck operation is user friendly and easy to pull
- The hold down is easy to operate
- Leveler is well-balanced for quick, easy articulation and automatically maintains positive lip contact with trailer movements
- The snubber chain and maintenance brace are positioned at side edges allowing easy access to the pit for maintenance and cleaning
Features
Installer Friendly
Safety Focus
- Installers are never under the pit
- Minimal bumps or gaps on deck/lip reduce trip hazards for workers
- Proprietary powder coat formulation on deck and lip surfaces is textured to provide enhanced traction and non-slip protection even when wet
Durability, Low Maintenance, Low Downtime

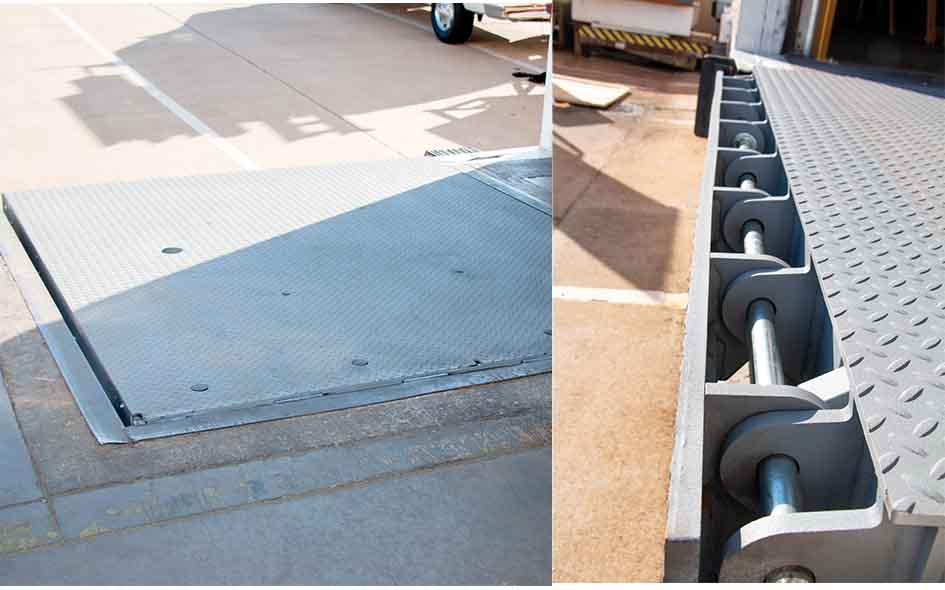

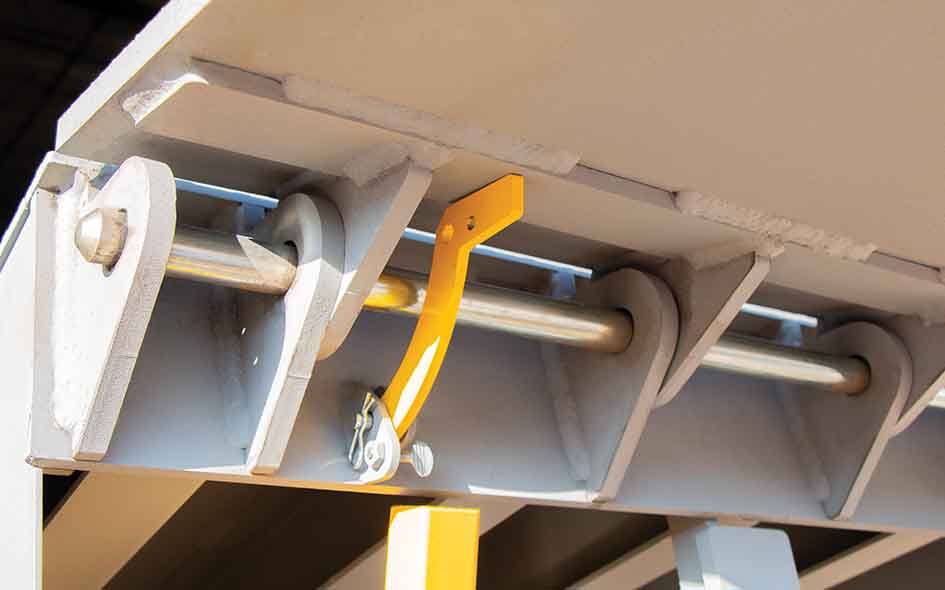

- Heavy duty multi-lug construction of the lip hinge. The design helps shed debris instead of trapping/grinding it between the lip/deck junction that can cause fatigue and maintenance issues. The lug construction also allows for easy lubrication of the hinge.
- Deck hinge is fully supported across the entire width of the deck, which spreads the load across the width of the deck instead of concentrating the load on just a few hinge points
- Durable textured powder coat provides an extremely durable finish, better corrosion protection and adhesion compared to wet paint
- Complies with ANSI MH30.1-2022 that includes rigorous load testing requirements
- Deck Thickness ¼ inch
- Lip Thickness 5/8 inch 30/35K, ¾ inch 40/45K
Environmentally Friendly
- Our powder coat process has fewer Volatile Organic Compounds (VOCs) and solvents compared to paint
- Overspray is recycled which reduces waste disposal issues compared to a traditional paint process
The US Environmental Protection Agency (EPA) recommends powder coatings as a sustainable coating option
Installation and Serviceability
- Open base frame creates generous space for service along the full length of the leveler, including the rear which is the most difficult area to reach for cleaning and a common collection point for debris
- Leveler main springs are tightened/loosened with one adjustment point conveniently located on lift arm
- Field serviceable with easy to reach adjuster for main spring
- Serviceable lip and hinge pin can be removed without breaking welds
- Maintenance brace is easy to reach under the leveler and is tethered so it never gets lost. Brace holds leveler up by the deck to allow lip maintenance
- Leveler ships with four forklift lifting loops bolted to deck, allowing leveler to be lifted from the front or rear for easy transport and placement in the pit
MODEL M68R
| WEIGHT CAPACITY | DIMENSION (NOMINAL) | |
|---|---|---|
| 30,000, 35,000, 40,000, and 45,000 lbs. | Model M68R: 6' W x 8' L Model M78R: 7' W x 8' L |
|
| BUMPERS | STANDARD | OPTIONAL |
| Laminated Bumpers 410-14 W1 |
✓ | |
| Laminated Upgraded Bumpers 410-14 W2, 412-14 W1/W2, 610-14 W1/W2, V420-11 W1/W2, V620-11 W1/W2, V624-11 W1/W2 |
✓ | |
| Steel Face Bumpers 410-14 SF W1/W2, 610-14 SF W1/W2 |
✓ | |
| CONTROL | ||
| Hold Down A/R | ✓ | |
| Working Range 12" Above/Below Dock | ✓ | |
| FINISH | ||
| Gray Powder Coat | ✓ | |
| LIP | ||
| 16" Lip | ✓ | |
| 18" & 20" Lip | ✓ | |
| Lip Keepers | ✓ | |
| Lip Bevel | ✓ | |
| Lip Taper (Model M78R only) | ✓ | |
| SAFETY | ||
| Safety Legs | ✓ | |
| Maintenance Brace | ✓ | |
| Safety Tread on Deck and Lip | ✓ | |
| Toe Guards: Working Range | ✓ | |
| Toe Guards: Full Operating Range | ✓ | |
| TRANSPORT | ||
| Reinforced Lifting Bolt Holes in Deck (4) | ✓ | |
| Steel Lifting Loops (Bolt to Deck) (4) | ✓ | |
| WEATHER SEALS | ||
| Weather Seal: Brush | ✓ | |
| Weather Seal: Neoprene | ✓ | |
| Chain Hole Seal | ✓ | |
1-Year Limited Warranty; 2-Year Limited Warranty when Overhead Door™ brand door and Mechanical Pit Leveler purchased together.
