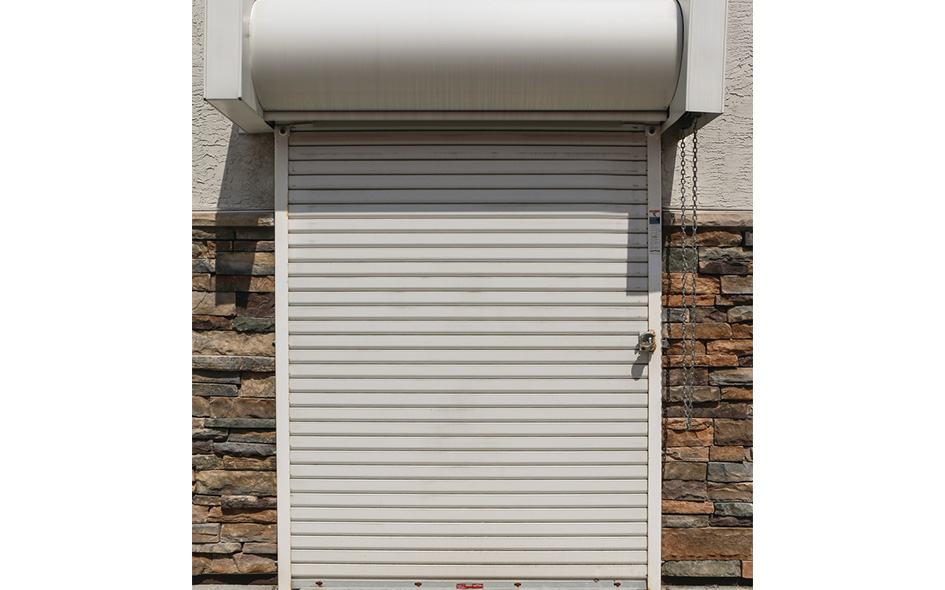

Rolling Steel Service Door – 600
Model 600
Coil-Away™ Model 600

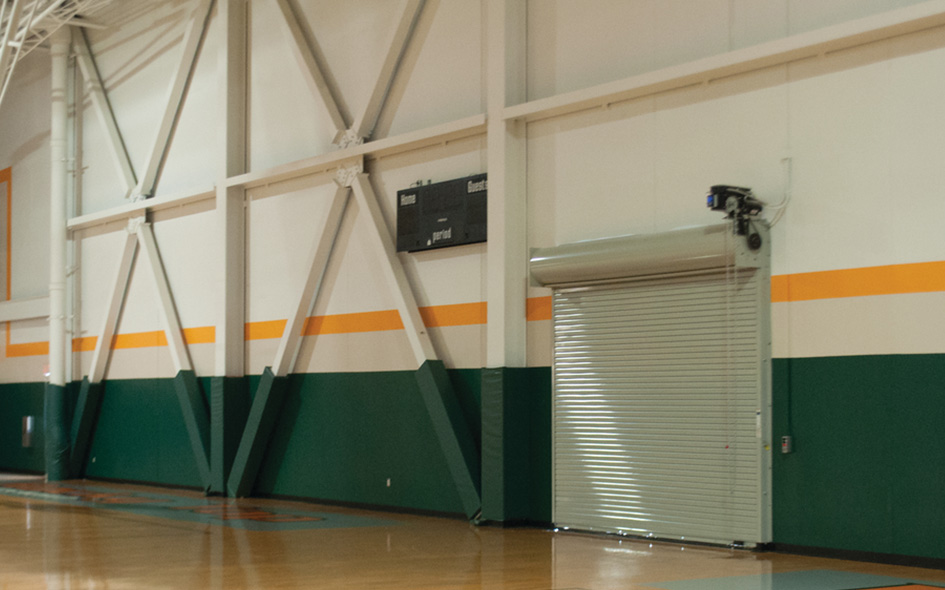

This rolling steel service door is an ideal choice where economy and functionality are important. The Model 600 door comes standard with bottom weatherseal; wind load, chain hoist or motor operation and hood options are available to expand its uses in a variety of light commercial applications.
Overview
Construction
| Product Specifications | |
|---|---|
| Standard Max Width | 16' (4877 mm) |
| Standard Max Height | 16' (4877 mm) |
| Curtain | 26 ga. galvanized steel up to 12'4" (3759 mm) wide 24 ga. galvanized steel up to 16' (4877 mm) width |
| Finish | white/white, white/brown or brown/white |
| Standard mounting | Face of wall |
| Standard springs | 10,000 cycle |
| Operation | Manual push-up up to 100 sq. ft. (9290 sq.mm) or 10' x 10' (3048 mm x 3048 mm) Chain hoist over 100 sq. ft. (9290 sq.mm) or 10' x 10' (3048 mm x 3048 mm) |
| Bottom Bar | Extruded aluminum with weatherseal |
| Slat profile | Flat face with angled ends, type CAW CAW – available up to 16'0” (4877 mm) wide. No perforation or fenestration available on CAW. |
| Lock | Slide bolts on push-up; padlockable chain keeper on chain hoist |
| Guides | Cold roll-formed channel and angle |
Options
Standard Exterior Color
Standard Exterior Color
White
Brown
Powder Coat Color Options
PowderGuard® Premium powder coat options are available in approximately 200 colors as well as custom matching to specification.
Actual door color may vary from the digital representation shown here. Actual color samples are available by request through your Overhead Door™ Distributor
Brochures
Documents

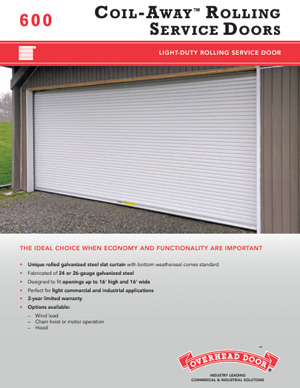

Rolling Steel Service Door Coil-Away™
