Rolling Counter Doors – 652
Model 652

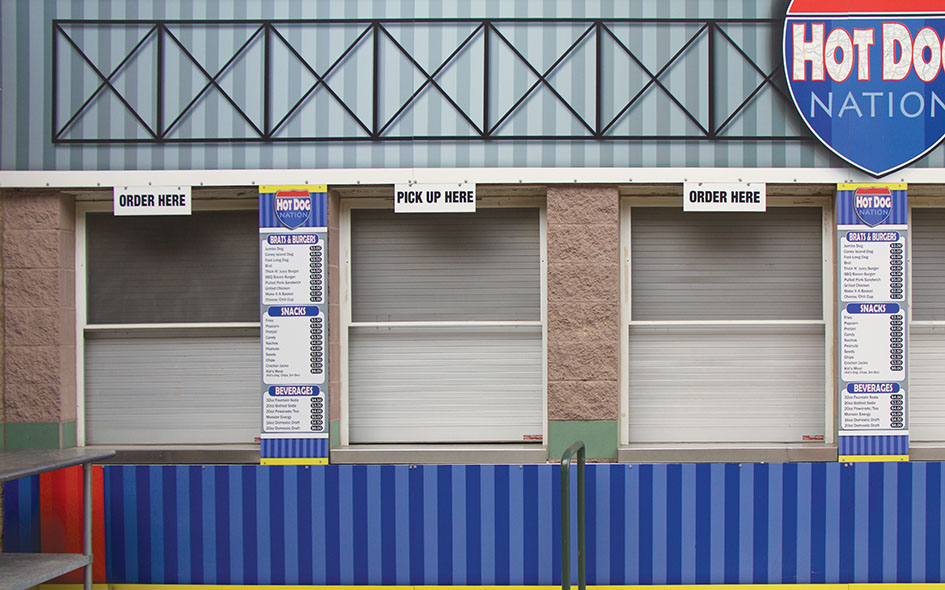

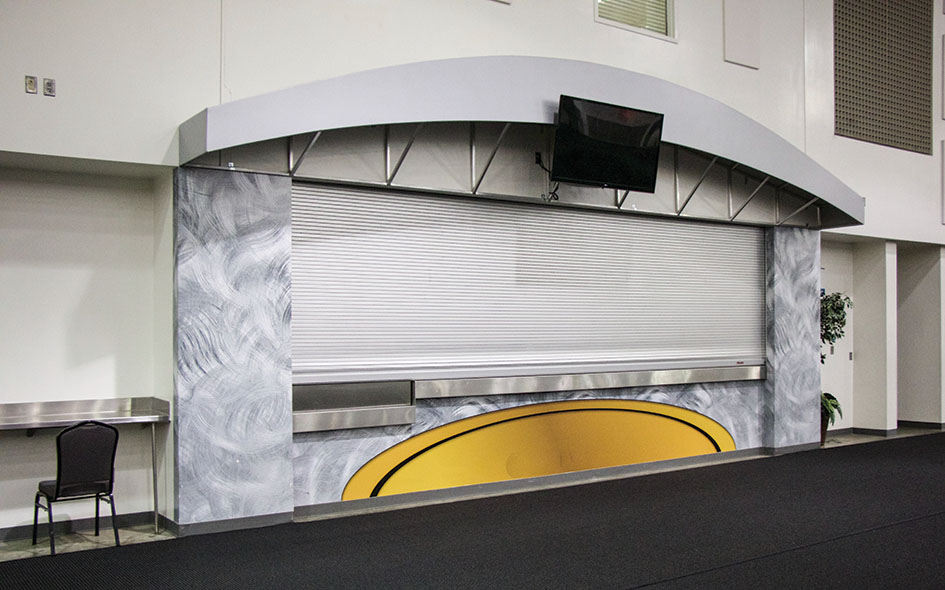

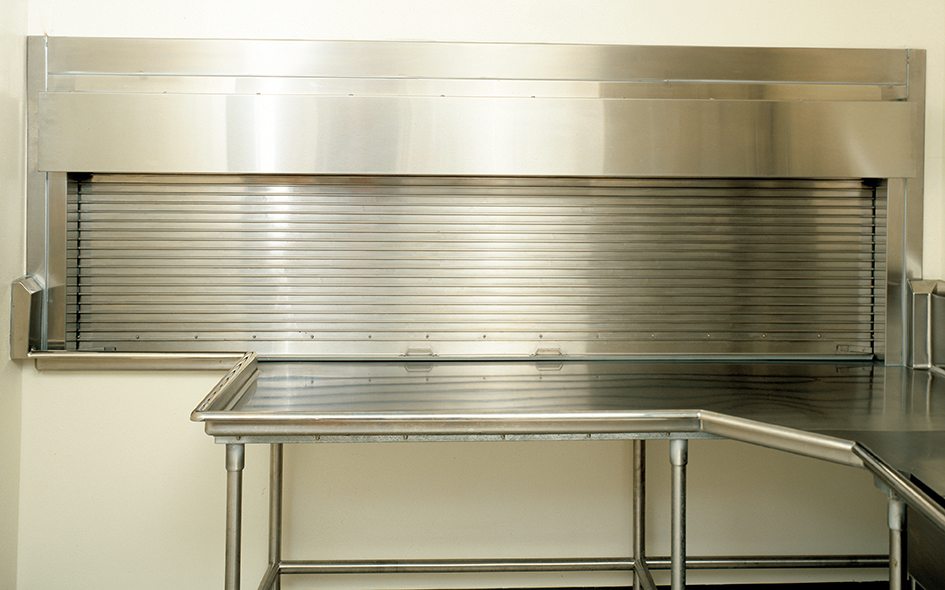

Distinguished by their clear anodized aluminum curtain finish, Model 652 rolling counter doors are designed to fit openings to 20′ wide and 9′ high. These doors are ideal for a host of small-opening applications where security is important and non-rated door is appropriate. Common applications include concession areas, cafeterias, pharmacies, parts-storage areas and ticket windows.
Overview
| Standard Max Width | 20' (6096 mm) |
| Standard Max Height | 9'0" (2743 mm) |
| Curtain | Interlocking flat profile slats (F-158) with endlocks; Aluminum |
| Hood | Aluminum |
| Finish | Clear anodized aluminum |
| Brackets | Steel plate to support curtain, counterbalance and hood |
| Guides | Extruded aluminum |
| Counterbalance | Helical torsion springs housed in a steel tube or pipe barrel |
| Mounting | Face of wall, between jambs |
| Operation | Manual push up |
| Lock | Interior slide bolt |
| Warranty | 24 - month limited |
Options
- Crank or electric operation
- PowderGuard® Premium powder coat finish options are available in approximately 200 colors as well as custom matching to specification.
- PowderGuard® Zinc and PowderGuard® Weathered finishes
- Vision lites
- Perforated slats
- Fenestrated slats with uniformly spaced openings of 5/8" x 3" (16 mm x 76 mm)
- Guides: 11-gauge roll-formed steel guides
- Cylinder lock
Aluminum, clear anodized
Powder Coat Color Options
PowderGuard® Premium powder coat options are available in approximately 200 colors as well as custom matching to specification.
