RapidSlat® Model 621
Model 621
RapidSlat® Model 621

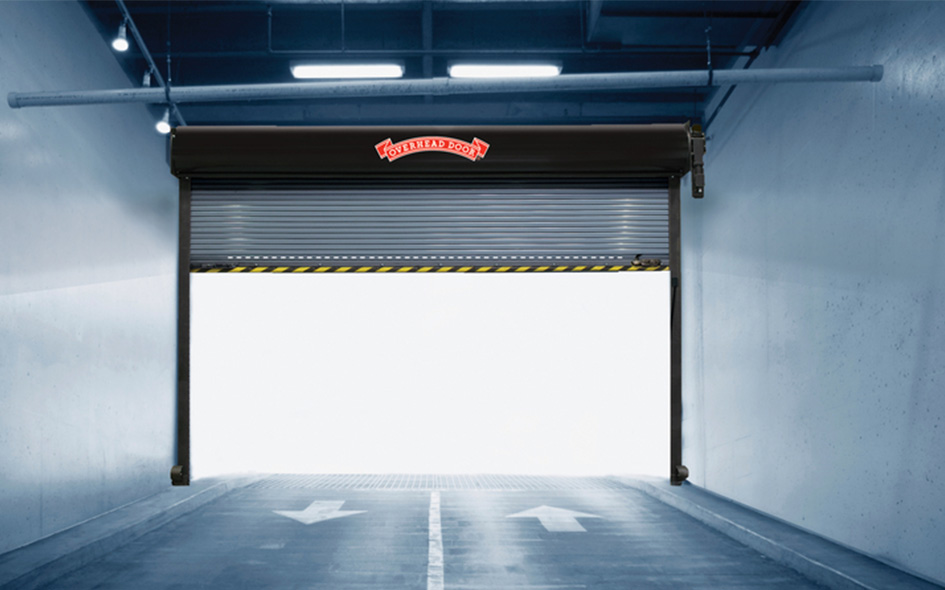

These advanced service doors are best suited to situations and applications with weather extremes. For example, agricultural facilities in the Midwest would benefit from the door’s rugged construction and weather sealed jambs.
Overview
Construction
| Product Specifications | |
|---|---|
| Standard Max Width | up to 30' (9246 mm) depending on gauge and slat type |
| Standard Max Height | up to 20' (6096 mm) depending on gauge and slat type |
| Mounting | Interior or exterior face of wall |
| Control panel | Variable frequency drive controller with self-diagnostics (time delay self-close timer and non-resettable cycle counter included); LCD readout, enclosure NEMA 4X rated |
| Curtain | Galvanized steel interlocking roll-formed slats, end locks attached to prevent lateral movement. Flat Profile type F-265 for doors up to 18'4" wide - 22 gauge; From 18'5" to 25'5" - 20 gauge; From 25'4" to 30'0" - 18 gauge |
| Curtain finish | Gray, tan or white PowderGuard® Max powder coat with hardening additive |
| Bottom bar | Two PowderGuard® Premium powder coated black angles (min. thickness 3/16”) with 2-wire, self-monitoring, fail safe, electric sensing edge |
| Hood | 24 gauge galvanized steel primed, black painted; interior hood baffle included |
| Brackets | Min. ¼” hot rolled primed, PowderGuard® Premium powder coated black steel |
| Guides | Three structural steel angles PowderGuard® Premium powder coated black |
| Door roll | Direct driven, springless roll with integrated shafts; self-aligning grease-able sealed bearings; door does not require counterbalance device |
| Safety devices | Built-in brake mechanism provides additional peace-of-mind against uncontrolled curtain travel Wireless monitored safety edge - all doors are equipped with a mandatory reversing or sensing edge to prevent entrapment. Photoelectric safety sensors with guards - provide additional safety during door operation to help prevent injury and damage |
| Operation | Direct drive, integrated gear motor/brake assembly (up to 24” per sec up speed / 12” per sec down speed); drive assembly and limit sensors are factory pre-assembled. Manual hand chain for power outage. Horsepower is appropriate to size and weight of door. 230V AC 3-phase motor |
| Actuator | Single open/close/stop push button station incorporated into control panel |
| Wind load | 20 psf when optional wear strips are not specified |
Warranty
- 5 year limited warranty coverage on all mechanical door system components and control panel hardware
Options
Standard Color: PowderGuard® Max
White
Gray
Tan
Actual door color may vary from the digital representation shown here. Actual color samples are available by request through your Overhead Door™ Distributor.
Powder Coat Color Options
PowderGuard® Premium powder coat options are available in approximately 200 colors as well as custom matching to specification.
Door Options
- Motor options: 208V AC 1PH†, 220V AC 1PH, 208V AC 3PH†, 230V AC 3PH, 460V AC 3PH, 575V AC 3PH†
(†requires stand-alone mounted transformer) - Flat profile type F-265 for doors up to 30’ wide. Available in: 20, 18 gauge galvanized steel; 22, 20 gauge stainless steel; 16 gauge (.050”) aluminum*
- Bottom bar also available in: galvanized steel, stainless steel and aluminum
- High usage wear strips (not available with high wind load option)
- Guide options include: galvanized steel and powdercoated steel
- Hood also available in: powdercoat, stainless steel and aluminum.
- Brackets also available in: powdercoat and galvanized steel
- Direct drive motor options available in 220/240V AC 1-phase, 460 or 575V AC 3-phase. 575V AC requires additional transformer. Horsepower is appropriate to size and weight of door.
- Dual photoelectric sensors available for safety
- Optional push buttons, loop detectors, radio control, motion detectors, or any combination thereof available for door operation/control
- PowderGuard® Max powder coat finish options are available in approximately 200 colors as well as custom matching to specification. On the RapidSlat® models, PowderGuard® Max is required on curtain to maintain warranty on finish
- PowderGuard® Textured powdercoat: Industrial textured powdercoat provides a thicker, more scratch resistant coat for added product protection available on brackets, guides and bottom bar
- Vision lites on 18 ga. steel slats uniformly spaced of 3" x 5/8" (76 mm x 16 mm) or 10” x 1” (254 mm x 25.4 mm)
*Consult factory for specific slat profile and gauge width limits.
