Open Air Grilles – Model 683
Model 683
When security is a priority, but you want to maximize air circulation, light infiltration and visual access to interior spaces, the Model 683 side folding open air grille is an ideal choice. Open-air side-folding grilles provide security, while allowing air circulation and full visual access to interior spaces. Model 683 offers a wide range of features to fit most any application where an open-air grille satisfies security requirements, such as in retail environments, malls, schools, offices and airports. The product line is distinguished by a variety of curtain patterns, colors and finishes.
Overview
Construction
| Product Specifications | |
|---|---|
| Operation | Manual unless size requires chain hoist |
| Curtain Frame | Truss-like aluminum top and bottom plates; 1/8” (3 mm) thick |
| Panel Width | 7” (178 mm) standard body |
| Finish | Aluminum clear anodized |
| Trolley assembly | 1 1/8” (29 mm) |
| Track detail | Top-mounted, heavy-duty aluminum sections Height: 1 5/8" (41 mm) Width: 1 3/8" (35 mm) |
| Track Curves and Radius | 90°: Standard body: 14” (356 mm) radius; Slim body: 10” (254 mm) radius 120°, 135° and 150°; Standard and Slim body: 10” (254 mm) radius |
| Radius | 14” (356 mm) standard body 22” (559 mm) wide body. Custom upon request. |
| Post types | Lead post Hook lock and wall channel; bi-part; top and bottom shoot bolts Intermediate post Bottom shoot bolt Trailing end post Traveling; fixed; hook lock and wall jamb; top and bottom shoot bolts; carrier |
| Locking mechanisms | Lead post Concealed cylinder-operated hook lock accessible from interior and exterior Intermediate post Concealed cylinder-operated shoot bolt accessible from one side only Trailing end post Attached 10’ max. (3048 mm) protection plate self-locking into a steel V-Stop |
| Security/Safety options | Thumb-turn guards and protection bars. |
Warranty
- 24 month OEM limited
Options
Door Options
- Thumb-turn guards and protection bars
- Anodized finish
- Vertical adjustment upward or downward
- Emergency Egress Door
Model 683

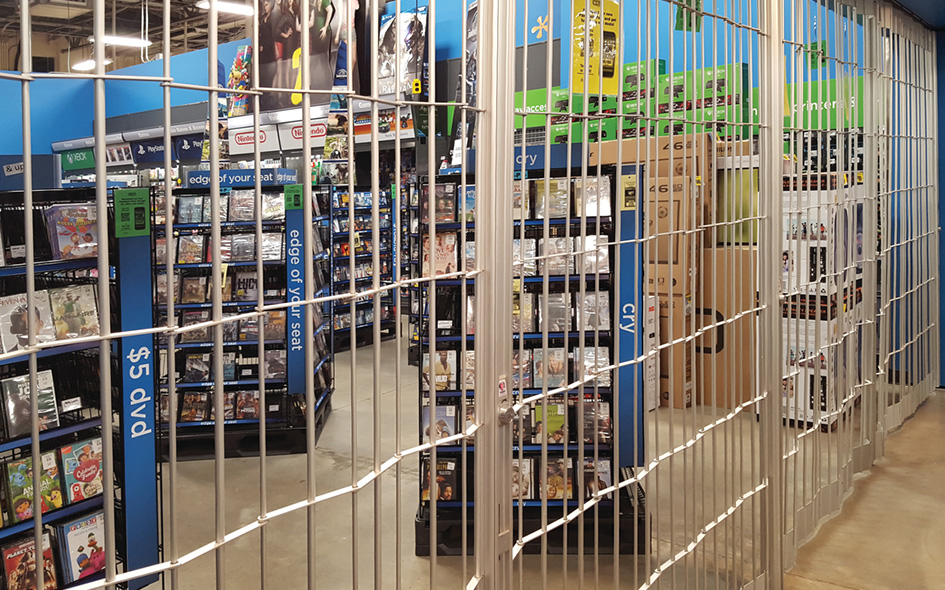

Straight Pattern
- Space between tubes 2 ½” (63.5 mm)
- Full panel width 6 5/16” (160 mm)
- Top plate 5 ¼” (133 mm); 13 gauge
- Top spacer tube size varies from curtain pattern to accommodate specific height.
- Aluminum rod 5/16” (3.17 mm)
- Aluminum link 1/8” x 5/8” X 6 11/16” (3.17 x 15.9 x 170 mm)
- Spacer tube ½” x 12” (12.7 x 305 mm)
- Bottom plate 5 ¼” (133 mm); 13 gauge
- 6” (152 mm) On Center
Model 683
Straight Pattern & Brick Pattern
- Space between tubes 2 ½” (63.5 mm)
- Full panel width 6 5/16” (160 mm)
- Top plate 5 ¼” (133 mm); 13 gauge
- Top spacer tube size varies from curtain pattern to accommodate specific height.
- Aluminum rod 5/16” (3.17 mm)
- Aluminum link 1/8” x 5/8” X 6 11/16” (3.17 x 15.9 x 170 mm)
- Spacer tube ½” x 12” (12.7 x 305 mm)
- Bottom plate 5 ¼” (133 mm); 13 gauge
- 6” (152 mm) On Center
