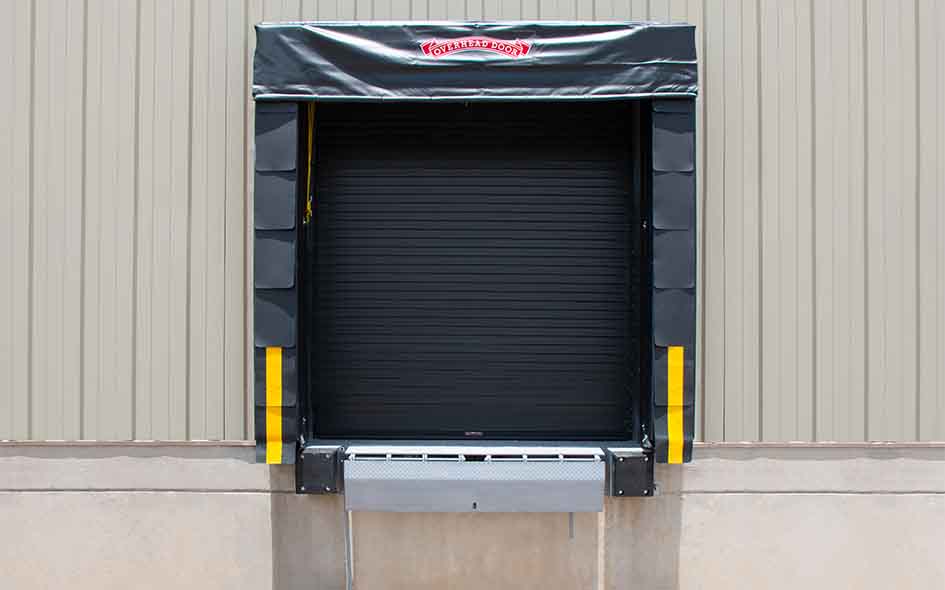

Edge of Dock Leveler E66R & E72R
Smooth Building-To-Truck Transition
- Designed to minimize bumps, gaps and damage to cargo and material handling equipment
- Reduces shocks and jolts to workers
- Facilitates fast movement of material handling equipment and forklifts
Easy and Safe Deployment
- Handle is easy to push/pull for comfortable and fast operation
- Handle range of motion keeps workers in a comfortable position
- Reduces bumps and trip hazards on deck and lip
Durable Design and Finish
- Rugged construction of lip and deck hinge provides durability for years of service
- Lip hinge sheds debris minimizing trapping and grinding between the lip deck junction causing fatigue
- Textured powder coat finish provides better traction for safety and helps to increase productivity. This durable finish also provides better corrosion protection and adhesion compared to wet paint
- Compliant with ANSI MH30.1-2022 which includes rigorous load testing requirements
Environmentally Friendly
- Compared to paint, our powder coat process has major environmental advantages
Features
Quick Unloading on a Smooth Path
- Smooth path allows forklift to move quickly over the leveler without bumps or jolts
- Optimized lip bevel provides a smooth roll over path from the trailer to the leveler
Easy-to-Use and Ergonomic
- Handle is quick and easy for workers to push/pull with a convenient built-in-storage receptacle and is tethered so it never gets lost
Ultimate Safety
- Minimal bumps or gaps on deck/lip for workers to trip over
- Proprietary powder coat formulation is textured to provide enhanced traction and non-slip protection. This is also helpful in wet or rainy conditions where non-textured surfaces can become slippery and dangerous or dangerous when wet
- Handle range of motion keeps workers in a comfortable position to help prevent injuries
- The edge of dock automatically returns to stored position to prevent hazardous conditions
Durability, Low Maintenance, Low Downtime

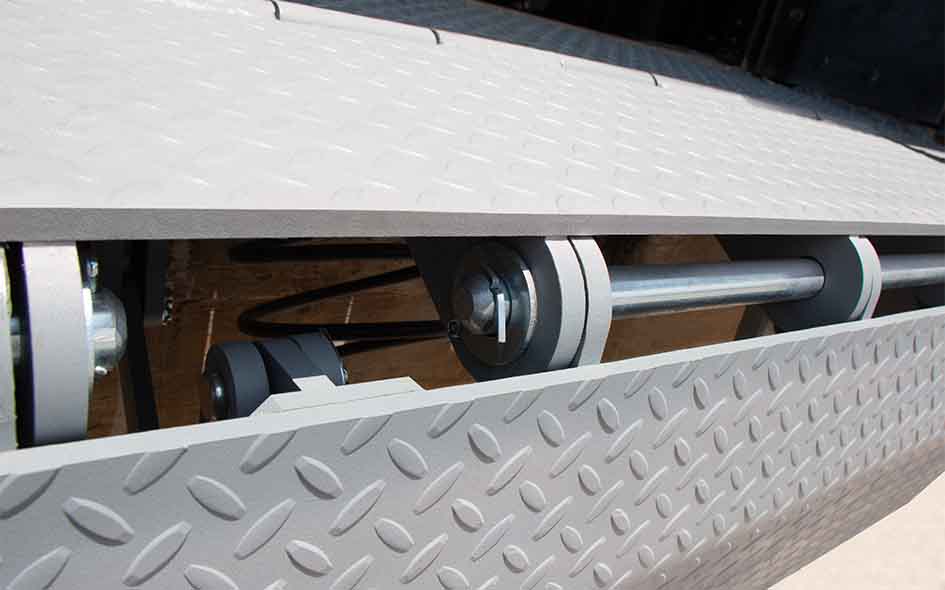

- Heavy duty multi-lug construction sheds debris instead of trapping/grinding it between the lip/deck junction and causing fatigue and maintenance issues
- Factory-applied powder coat material for increased durability and corrosion resistance compared to paint
Environmentally Friendly
- Our powder coat process has minimal Volatile Organic Compounds (VOCs) and solvents
- Overspray is recycled which reduces waste disposal issues compared to a paint process
- The US Environmental Protection Agency (EPA) recommends powder coatings as a sustainable coating option
Serviceability and Installation

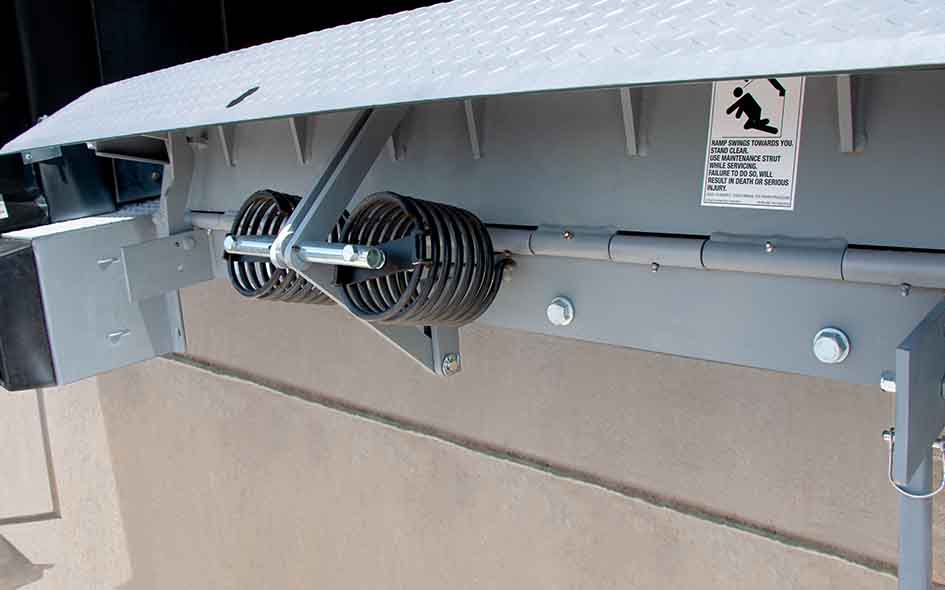

- Field serviceable with easy to reach adjusters for springs and kicker bar
- Serviceable lip and hinge pin can be removed without breaking welds
- Service brace is easy to reach under the leveler and tethered so it never gets lost
- Grease fittings to lubricate deck hinge for smooth operation
| MODEL | SIZE | WEIGHT CAPACITY |
|---|---|---|
| E66R | 66" | 20,000 Ibs. 30,000 Ibs. |
| E72R | 72" | 20,000 Ibs. 30,000 Ibs. |
| BUMPERS | STANDARD | OPTIONAL |
| Molded bumpers | ✓ | |
| Bumper boxes | ✓ | |
| LIP | ||
| 15" lip | ✓ | |
| 17" lip | ✓ | |
| Lip bevel | ✓ | |
| OPERATION | ||
| Auto return to store | ✓ | |
| Self storing handle | ✓ | |
| Service brace | ✓ | |
| Safety tread on deck and lip | ✓ | |
| Working range 3" above/below dock | ✓ |
Documents
Related products
Edge of Dock Leveler – Mounting Options
The Edge of Dock Leveler offers seamless functionality, engineered to optimize your dock’s performance. Paired with the right mounting option, it ensures smooth transitions, reinforced stability, and long-term reliability—no matter the working environment. From reducing downtime to improving safety, our mounting solutions elevate your operation’s efficiency.
Whether you need smooth building-to-truck transitions, stable vertical mounting, or easy concrete integration, we have a solution for you.
H SERIES AUTODOK® HEAVY DUTY HYDRAULIC
Pit Style Hydraulic Dock Leveler
The “H” Series hydraulic dock leveler is structurally designed for the most demanding applications with easy push button convenience for smooth, consistent operation plus outstanding toughness and dependability in your most challenging dock operations. McGuire offers a hydraulic dock leveler to meet any of your dock equipment needs while providing low lifetime ownership costs and years of trouble free service with the industry’s best built-in safety. They are most often mounted in a pre-formed pit at the dock commonly used to reduce the grade between the dock floor and the trailer bed. Various sizes and capacities allow for a large amount of flexibility. Hydraulic levelers have added safety features and save time in operation and maintenance.
The H Series comes in 6’, 6’6” & 7’ standard widths and 6’, 8’ & 10’ standard lengths with 12’ and other lengths available. Standard capacities for the “H” Series are 45K, 55K, 75K and 100K CIR (Comparative Industry Rating).
RRH SERIES RAIL RAMP HYDRAULIC LEVELER
RRH Series Rail Ramp Hydraulic Leveler
Heavy-Duty Hydraulic Dock Solution for Rail Applications
The RRH Series Rail Ramp Hydraulic Leveler is engineered for high-demand rail dock operations, delivering effortless push-button activation with superior toughness and reliability. It is designed for seamless integration and can be mounted on the dock wall or recessed in a short pit, offering operational flexibility and low ownership costs.
Steel Dock Board (T)
Steel Dock Board (T)
Heavy-Duty Stability for Secure Docking
The Steel Dock Board (T) is built for demanding loading environments, offering unmatched strength and stability. Featuring an all-welded steel construction, it is secured in place using two 1" stress-proof steel pins, preventing slippage during operation. Its double-bend design allows for seamless adaptability to various trailer types, including conventional, refrigerated, and container trailers. With fold-down lifting loops for easy transport and multiple pin hole locations for precise positioning, this dock board ensures safe and efficient loading.
Steel Dock Board (TFL)
Steel Dock Board (TFL)
Reliable Strength with Locking Leg Stability
The Steel Dock Board (TFL) features the same heavy-duty design as the “T” dock board but utilizes locking legs instead of steel pins for secure positioning. This design ensures stability and ease of use, making it an excellent choice for standard dock loading operations.
Not recommended for below-dock loading.
Steel Dock Board (TNB)
Steel Dock Board (TNB)
Strong, Secure, and Easy to Position
The Steel Dock Board (TNB) features a single-bend design with a lifting chain and full-width locking legs for enhanced stability and secure placement during loading operations. Built for durability, it provides a reliable bridge between the dock and the trailer.
Not recommended for below-dock loading.
VSH SERIES VERTICAL STORING HYDRAULIC LEVELER
VSH Series Vertical Storing Hydraulic Leveler
Optimized for High-Security and Temperature-Controlled Dock Operations
The VSH Series Vertical Storing Hydraulic Leveler is engineered for demanding dock environments, providing push-button operation, exceptional durability, and low maintenance costs. Its vertical storing design enhances climate control, security, and facility cleanliness, making it ideal for temperature-sensitive and high-security applications.
