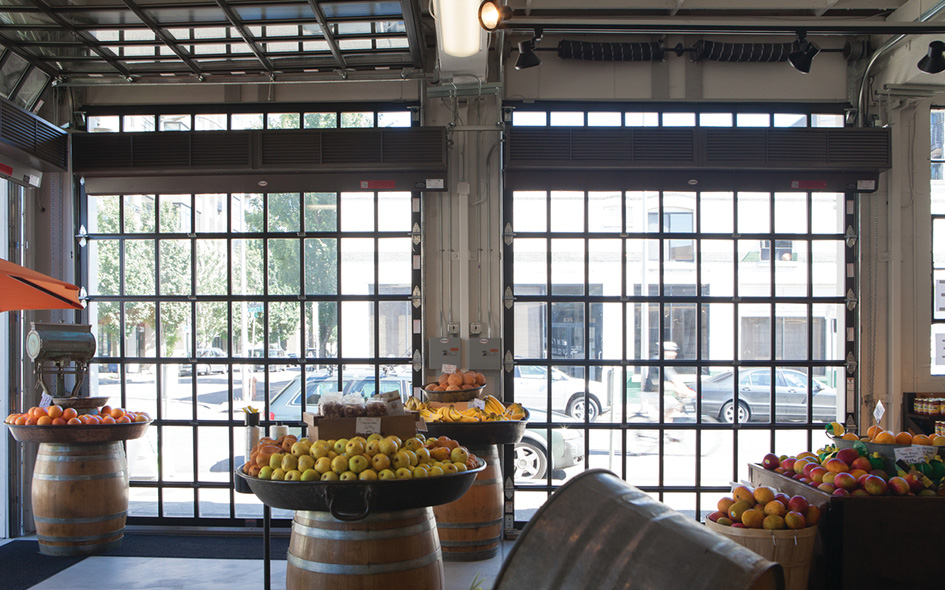

Aluminum Glass Door – 511
Model 511
Aluminum Glass Door model 511 is designed in sizes up to 16’2″ (4928 mm) wide and 16’1″ high (4902 mm). Featuring a narrow center stile width of 21/32″ (17 mm), these doors are sleek, attractive and permit maximum visibility. An array of glazing choices, top and bottom rail widths, finishes and special options customizes the 511 to satisfy nearly any project requirement.
Overview
| Product Specifications | |
|---|---|
| Standard Max Width | 16'2" (4928 mm) |
| Standard Max Height | 16'1" (4902 mm) |
| Panel thickness | 1 3/4" (45 mm) |
| Material | 6063-T6 aluminum |
| Standard finish | 204R-1 clear anodized |
| Center stile width | 21/32" (17 mm) |
| End stile width | 2 3/4" (70 mm) |
| Top rail width | 2 3/8" (60 mm)or 3 3/4" (95 mm) |
| Top intermediate rail width | 3/4" (19 mm) |
| Bottom intermediate rail width | 5/8" (16 mm) |
| Bottom rail width | 2 3/8" (60 mm) or 3 3/4" (95 mm) or 4 1/2" (114 mm) |
| Weatherseals | Bottom, flexible PVC |
| Standard springs | 10,000 cycle |
| Track | 2" (51 mm) |
| Mounting | Angle |
| Operation | Manual pull rope |
| Hinges and fixtures | Galvanized steel |
| Lock | Galvanized, interior-mounted single unit |
Warranty
- 1-year limited
Options
Anodized Finishes
Clear (standard)
Light Bronze
Medium Bronze
Dark Bronze
Black
Powder Coat Color Options
PowderGuard® Premium powder coat options are available in approximately 200 colors as well as custom matching to specification.
Double Strength (DSB)Standard
Obscure
Satin Etched
Gray Tint
Green Tint
Bronze Tint
Impact Frosted Polycarbonate
- Electric operator or chain hoist
- Bottom sensing edge
- 3" track
- Bracket mounting (not available on full vertical door tracks)
- Higher-cycle springs in 25k, 50k, 75k, 100k cycle
- Exhaust ports
- Finish options:
- Bronze anodized
- Select from 197 standard powder coat colors or colored to match specification
- Window Glazing Options:
- 1⁄8" (3 mm) DSB
- 1⁄8" (3 mm) or 1⁄4" (6 mm) acrylic
- 1⁄8" (3 mm) or 1⁄4" (6 mm) tempered
- 1⁄8" (3 mm) or 1⁄4" (6 mm) clear polycarbonate
- 1/4” (6 mm) and 3/8” (10 mm) multi-wall polycarbonate
- 1⁄4" (6 mm) wire glass
- 1⁄2" (12 mm) insulated glass
Brochures
Documents
Aluminum Glass Door
Related products
Aluminum Glass Door – 522
Model 522
Aluminum Glass Door model 522 is designed in sizes up to 18’ 2” (5486 mm) wide and 14’ 1” (4318 mm) high. This aluminum full-view door, featuring a frameless design, is ideal for restaurants, auto dealerships and any application where the door needs to integrate seamlessly with the aesthetics of the building. Available with five glass options.
Aluminum Glass Doors 521
Model 521
Aluminum Glass Door model 521 is a sectional aluminum door appropriate for environments where maximum light infiltration and/or visual access is required. Designed to fit openings up to 26'2" (7976 mm) wide and 20'1" (6121 mm) high, the Model 521 features a wide, 2-11/16" (68 mm) center stile, 3-3/4" (95 mm) or 4-1/2" (114 mm) bottom rail, based on door size.
Sectional Steel Door Model 416
Model 416
Sectional steel door model 416 is strong, durable and versatile. Designed for heavy-duty commercial and industrial applications, this door is available in 16-gauge galvanized steel, in sizes up to 32'2" (9804 mm) width and 21'1" (6426 mm) in height. Available with an array of options, the Model 416 can be easily customized to meet any project requirement where an extra heavy-duty door is required.
Sectional Steel Door Model 422
Model 422
Sectional Steel Door model 422 door is ideal for heavy-duty applications requiring protection against the elements. These doors feature a 2" (51 mm) panel thickness, 16-gauge steel intermediate and end stiles, ribbed steel exterior and 26-gauge steel back cover in a white finish. Polystyrene insulation provides an R-value of 7.35. The Model 422 is a 20-gauge steel door available in sizes up to 29´2" in width and 24´1" in height (8890 mm and 7341 mm). A multitude of options -- including reinforcing struts, movable center posts, and motor operation allow these insulated heavy-duty doors to be used in a variety of commercial and industrial environments.
Sectional Steel Door Model 424
Model 424
Section Steel Door model 424 are designed for heavy-duty use in a variety of commercial and industrial applications. This door features a 2" (51 mm) panel thickness, 16-gauge steel intermediate and end stiles, ribbed steel exterior and a white paint finish. The Model 424 is available in sizes up to 30´2" (9195 mm) in width and 24´1" (7341 mm) in height, and is also available in Industrial Brown. Numerous options including weather stripping, reinforced struts, movable center posts and motor operation allow these heavy-duty doors to meet nearly any project requirements.
Sectional Warehouse Doors
Model 406
Our Sectional Warehouse Doors provide a highly efficient design for strength and longevity for use in demanding commercial settings. They feature full 2” thickness for ultimate strength and durability. Optional insulation consists of 1 5/16” expanded polystyrene throughout the door. Both steel and polylaminate backer choices are available to ensure these models are well-suited for a wide range of applications.

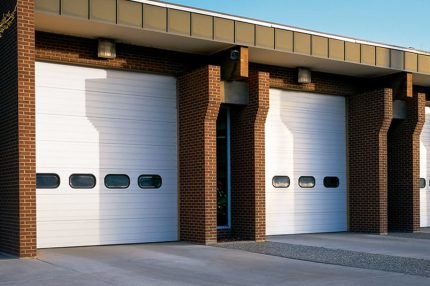

Thermacore® Sectional Steel Doors – 593
